ریال2,217,000
اکنون موجود نیست؛ اما میتوانید این محصول را پیشخرید کنید

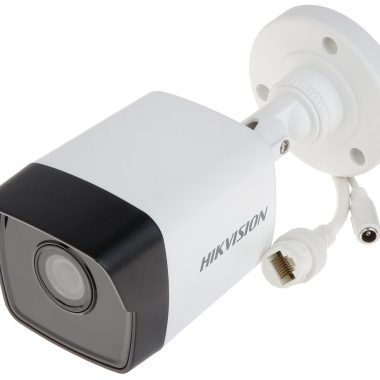

دوربین دیواری
تحت شبکه ( اتصال از طریق کابل شبکه )
2 مگاپیکسل HD 1080P
رزولوشن 1080*1920
فرمت ضبط +H265
لنز 2.8 ( زاویه دید 106 درجه )
قدرت دید در شب 30 متر
بدنه پلاستیک
Camera
Image Sensor
1/2.8″ progressive scan CMOS
Min. Illumination
Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100, 000 s
Slow Shutter
Yes
Day &Night
IR cut filter
Wide Dynamic Range
Digital WDR
DNR
3D DNR
Lens
Lens
Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Auto-Iris
No
Aperture
F2.0
Focus
No
FOV
2.8 horizontal FOV 103°, vertical FOV 59°, diagonal FOV 118°,4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°,6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Lens Mount
M12
Illuminator
IR Range
Up to 30 m
Wavelength
850 nm
Video
Max. Resolution
1920 × 1080
Video Compression
Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 8 Mbps
Smart Feature-Set
Region Of Interest
1 fixed region for main stream and sub-stream
Image Enhancement
BLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser,50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Day/Night Switch
Auto, scheduled
Main Stream Max. Frame Rate
Main stream supports
Sub-Stream Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users,3 levels: Administrator, Operator, and User
Client
iVMS-4200, Hik-Connect, iVMS-5200
Web Browser
IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
Alarm Trigger
Motion detection, video tampering alarm, illegal login
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Compression Standard
H.264+
2.8 mm, 4 mm, 6 mm
H.265+
Main stream supports
General
Firmware Version
5.5.2
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Startup And Operating Conditions
-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
Material
Metal & Plastic
Dimensions
Camera: Ø 70 mm × 172.7mm ( 2.7″ × 6.8″),With package: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
Camera: Approx. 280 g (0.62 lb.),With package: Approx. 530 g (1.17 lb.)
Power Consumption And Current
12 VDC, 0.4 A, Max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Interface Protection
IP67,TVS 2000V lightning protection, surge protection and voltage transient protection
| برند ها | هایک ویژن |
|---|
